Andover Collection™ Permeable
Our Andover Collection StoneCleft and Smooth pavers provide a stylish solution when seeking a permeable interlocking pavement with a large-scale format. Andover Collection is ideal for pedestrian applications and vehicular pavements limited to personal vehicles.
Features:
- Smooth or StoneCleft traditional surface
- 2 ¾” thickness for improved flexural strength
- Set-Stone Pattern utilizes every stone in the set with an easy-to-follow pattern that gives the appearance of a random layout – simplifies placement, saves time and eliminates waste
- Can be installed as a traditional or permeable pavement
- Ideal for pedestrian applications and vehicular pavements limited to personal vehicles.
- Andover Collection features an infiltration rate initially greater than 100″/hour. *
*Laboratory results with #9 stone using ASTM C 1781 Test Method for Surface Infiltration Rates of Permeable Pavers.
Dimensions & Coverage
5-PIECE
| 2 pcs/set | 5 1/2″ x 11″ | 2 3/4″ thick | ||

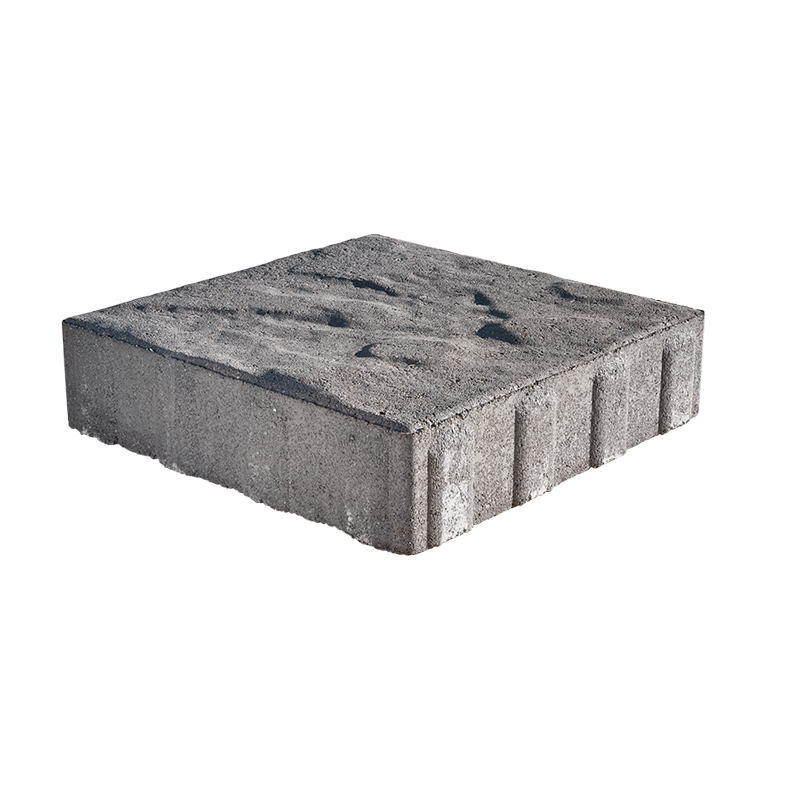

| 2pcs/set | 11″ x 11″ | 2 3/4″ thick | 3.8 sf/set | 102.6 sf/cube |

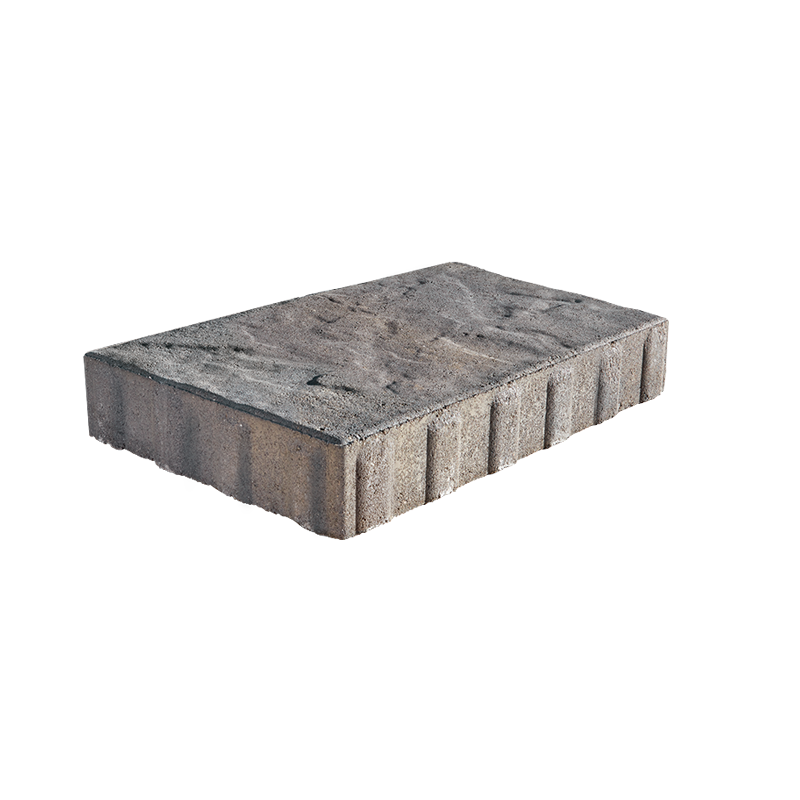

| 1 pc/set | 11″ x 16 1/2″ | 2 3/4″ thick | ||
This product is susceptible to scuffing during installation and snow removal. Protect the surface when transporting and handling. Use a urethane pad attached to the compactor plate when compacting. When removing snow, the height of snow blowers and plows must be raised or a poly blade used on the plow edge.
Color options:

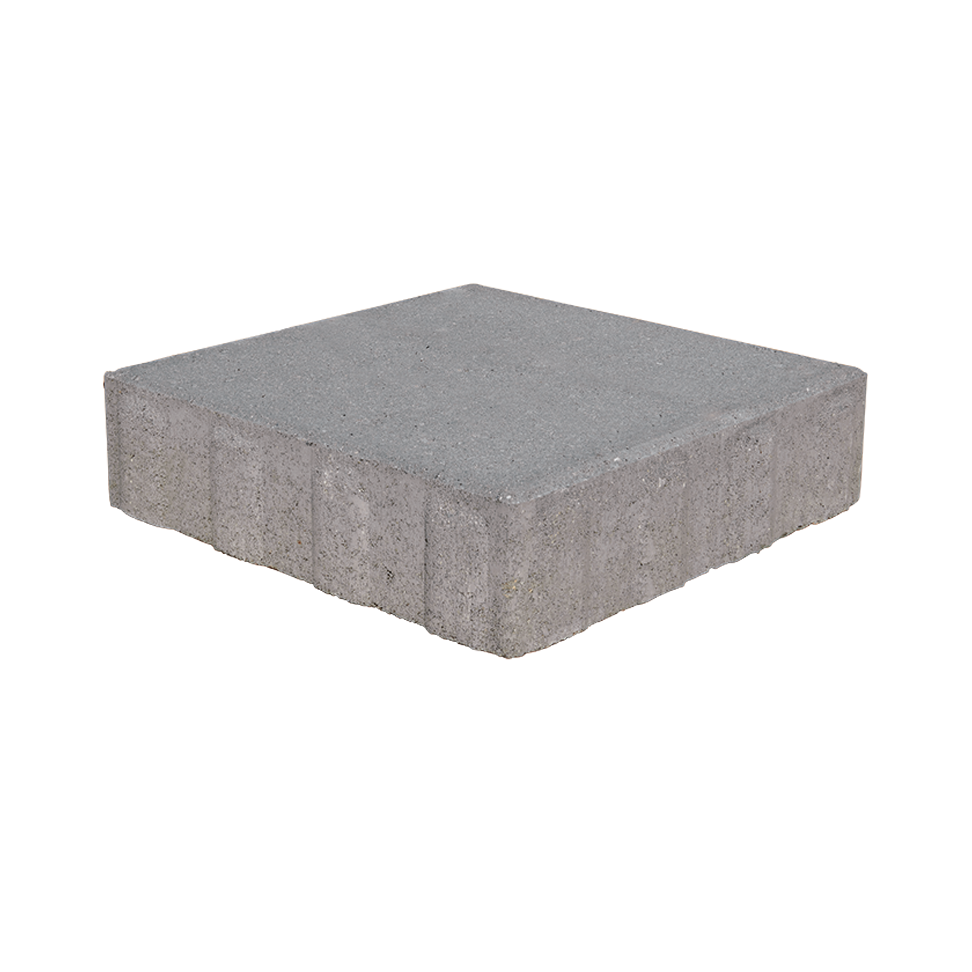

Chatham Blend (Smooth)

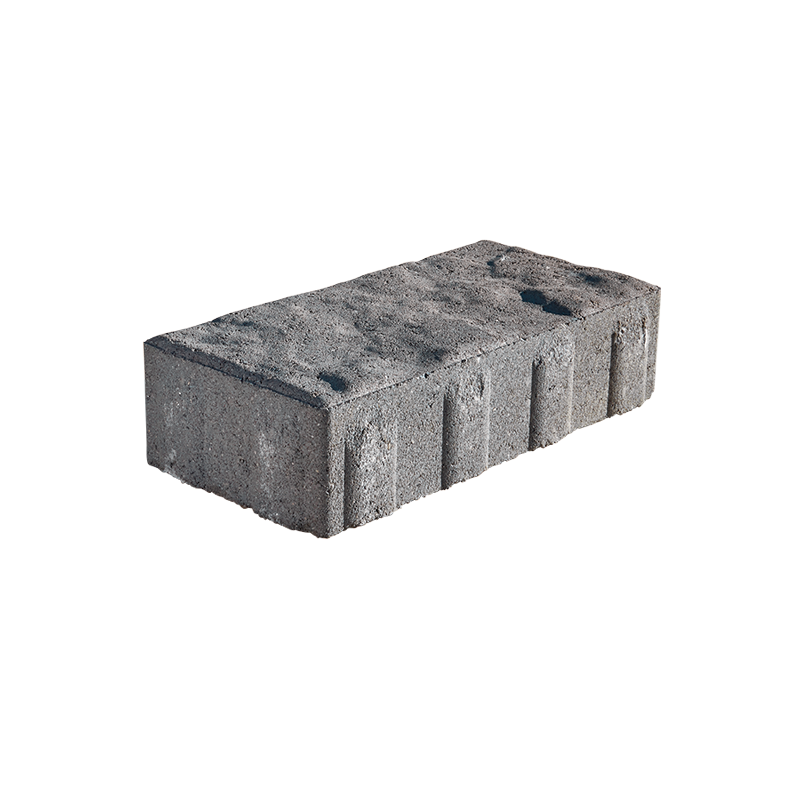

Chatham Blend (StoneCleft)
Oxford Grey (Smooth)
Oxford Grey (StoneCleft)
A picture is worth a thousand words. Many factors influence one's perception of images and colors, and they may appear different from one photo to the next. The angle of light and time of day greatly affect perception, and printed in ink cannot exactly match the actual concrete product colors. Once you have narrowed your choices, obtain actual samples from your dealer or contractor. View them in the setting where they will be installed before making your final decision.
Pattern options:
The Andover Collection can be placed randomly or in our “Set-Stone” pattern that creates easy to place, impressive arrangements with little or no waste. Each set, consisting of 5 pieces (Figure A), is placed as a module in a herringbone pattern. Stones within the module can be rearranged to vary the design as shown in Figure B. Add a finishing touch by using one of our Andover 5511 styles as border or banding courses.
Andover Collection Herringbone Pattern #1
Andover Collection Herringbone Pattern #2

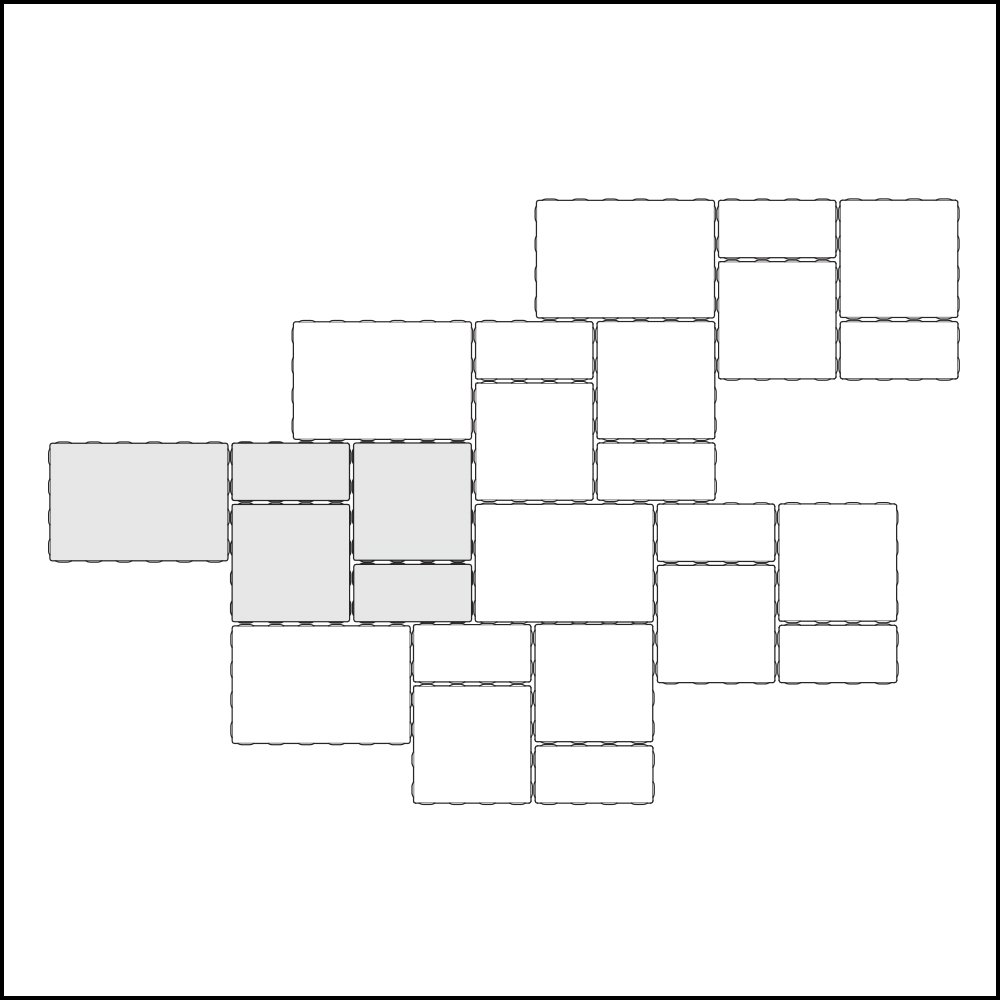

Andover Collection Pattern With All Stones #1

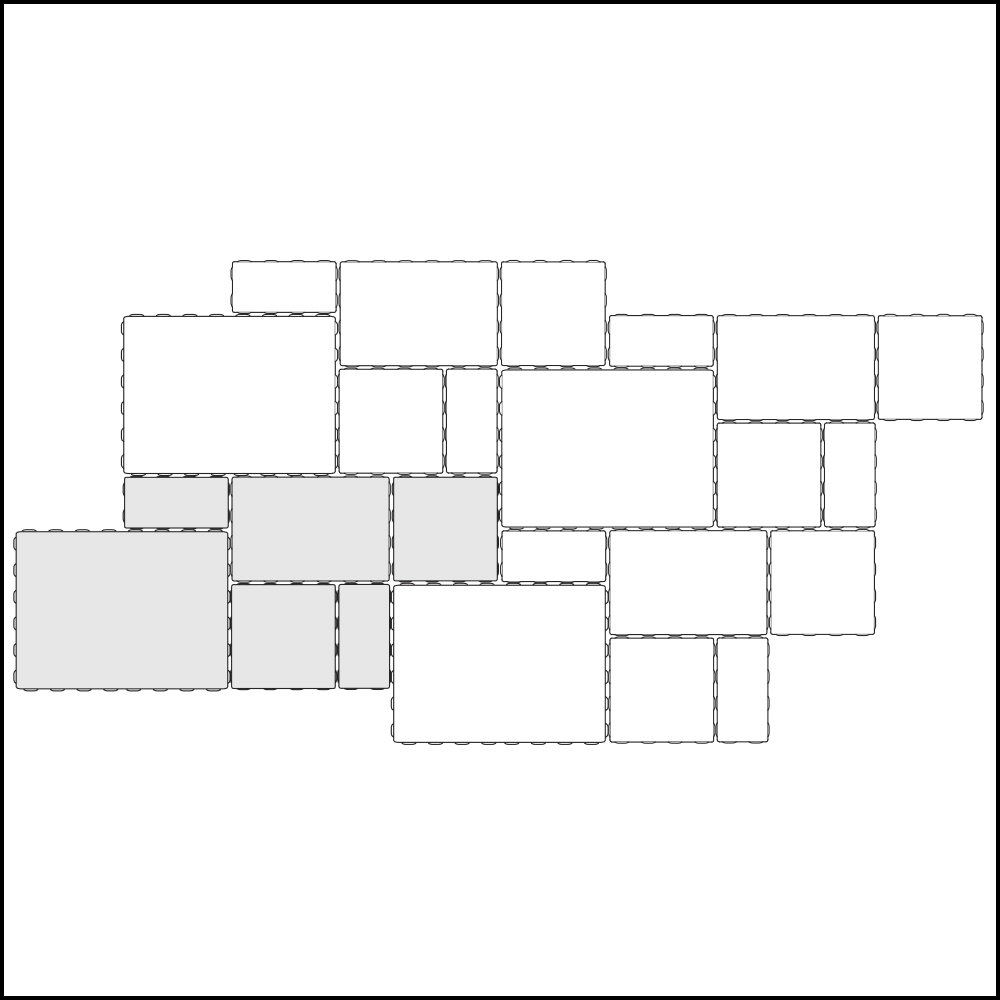

Andover Collection Pattern With All Stones #2
Applications:
Commercial/Municipal

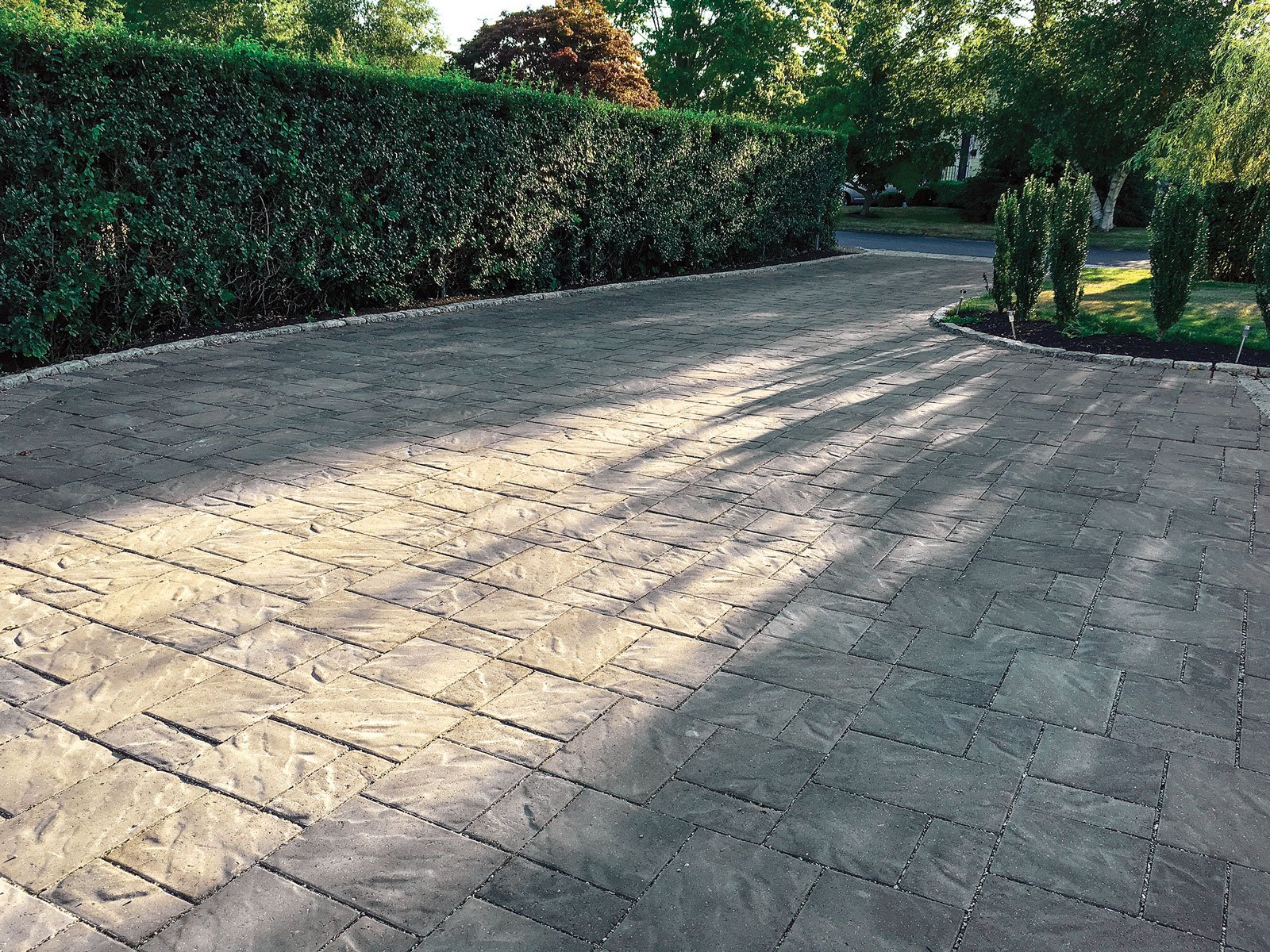

Driveways

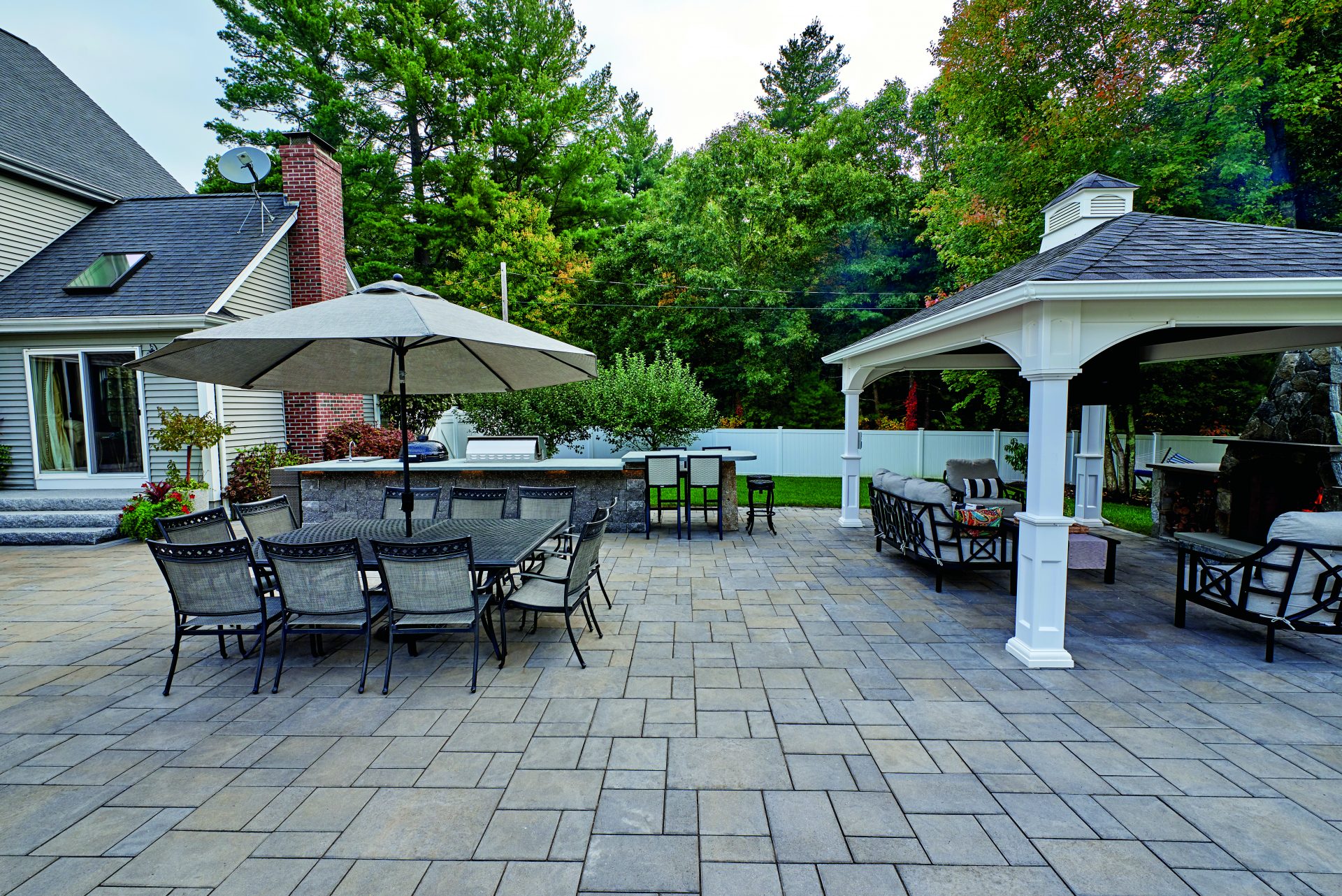

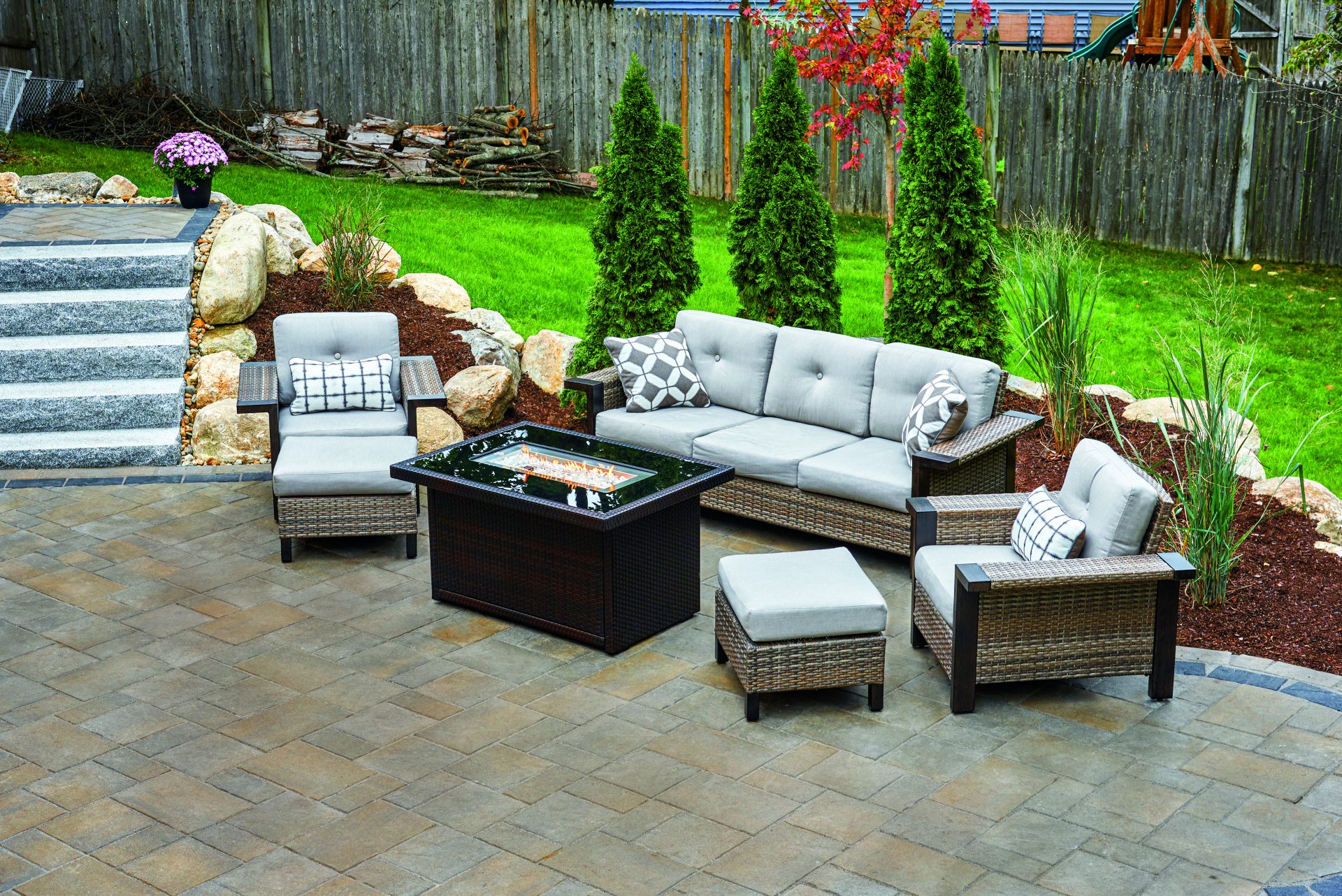

Patios & Walkways
Permeable
