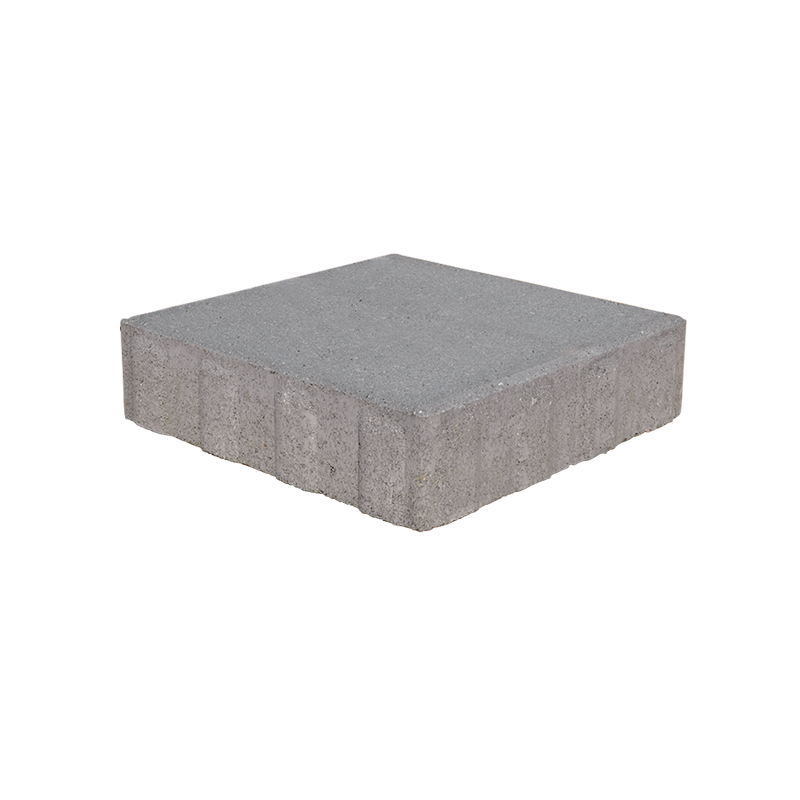

Andover Collection Smooth

The clean, classic profile and minimal chamfers of our Andover Collection Smooth are ideal for dramatic, contemporary projects. Offered in the same sizes as our Andover Collection StoneCleft, you can create the same pattern designs with a sleek, elegant appearance.

Features:

  • Smooth traditional surface
  • 2 ¾” thickness for improved flexural strength
  • Set-Stone Pattern utilizes every stone in the set with an easy-to-follow pattern that gives the appearance of a random layout – simplifies placement, saves time and eliminates waste
  • For a more random and dramatic appearance, insert our GrandStone in place of stones within the Set-Stone Pattern or create unique designs
  • Can be installed as a traditional or permeable pavement
  • Ideal for pedestrian applications and vehicular pavements limited to personal vehicles



Dimensions & Coverage

5-PIECE

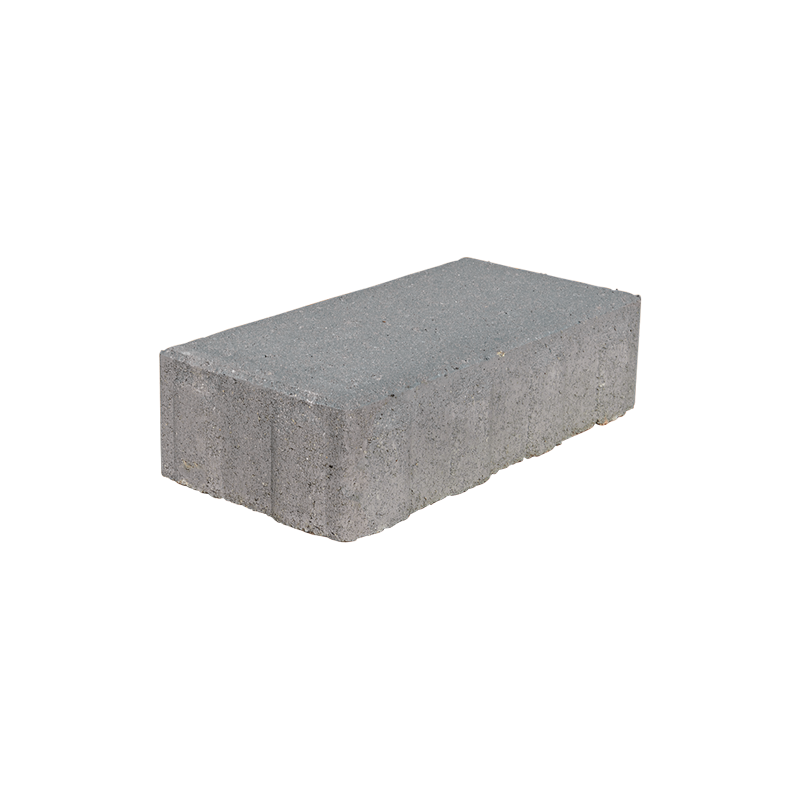

2 pcs/set  5 1/2″ x 11″ 2 3/4″ thick
2pcs/set 11″ x 11″ 2 3/4″ thick 3.8 sf/set 76 sf/cube
1 pc/set 11″ x 16 1/2″ 2 3/4″ thick

GRANDSTONE

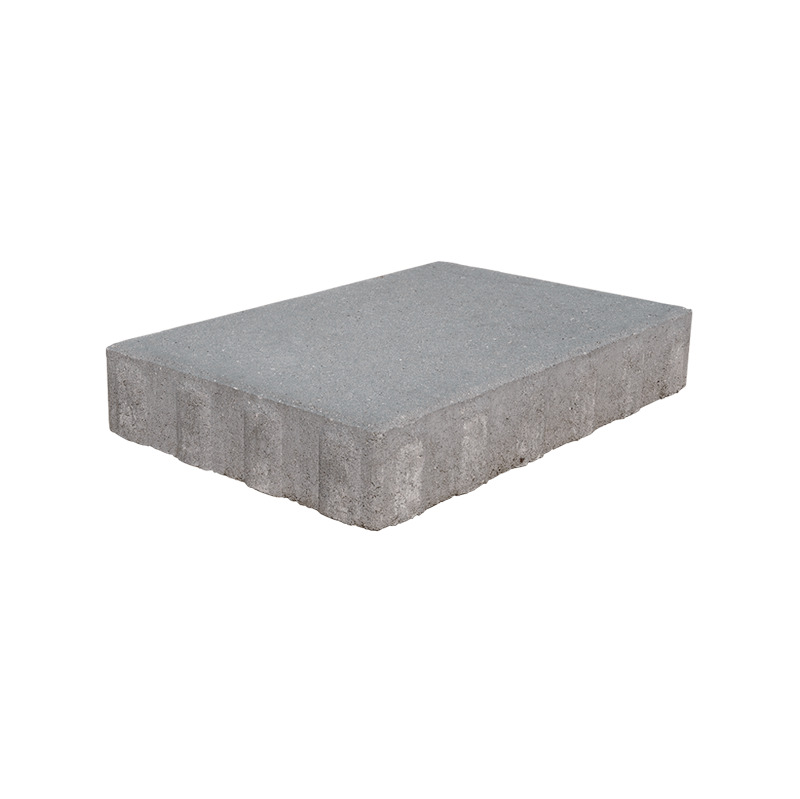

Individual unit 16 1/2″ x 22″ 2 3/4″ thick 2.52 sf/pc 100.8 sf/cube
 width=This product is susceptible to scuffing during installation and snow removal. Protect the surface when transporting and handling. Use a urethane pad attached to the compactor plate when compacting. When removing snow, the height of snow blowers and plows must be raised or a poly blade used on the plow edge.

Shape options:

2 pcs/set
(5 1/2" x 11")
2 pcs/set
(11" x 11")
1 pc/set
(11" x 16 1/2")
16 1/2" x 22"

Color options:

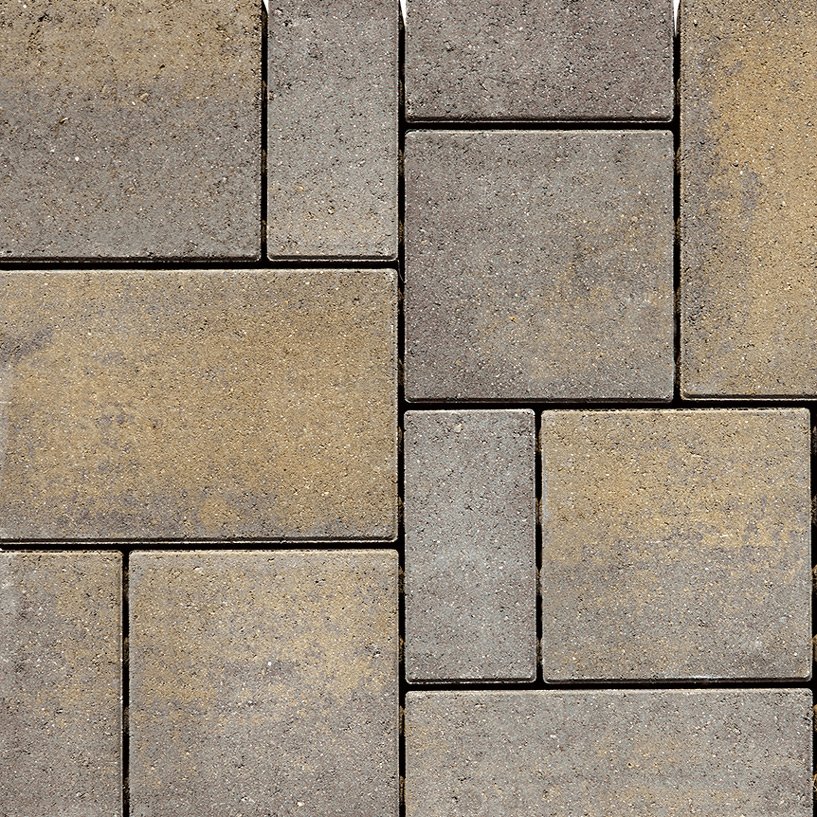

Chatham Blend

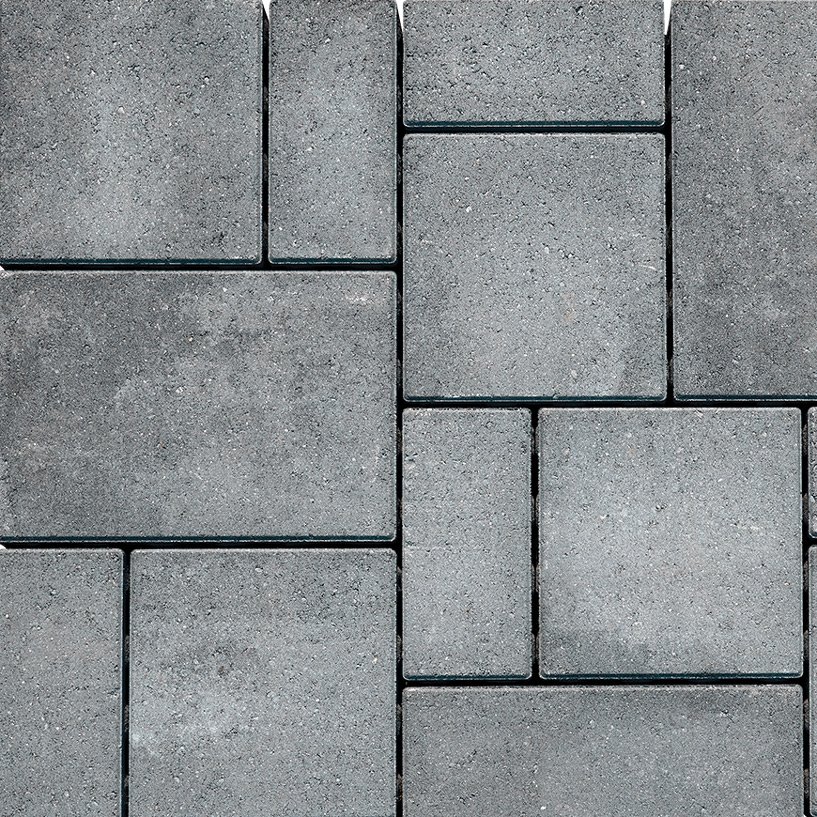

Oxford Grey
Pewter

Pattern options:

The Andover Collection can be placed randomly or in our “Set-Stone” pattern that creates easy to place, impressive arrangements with little or no waste. Each set, consisting of 5 pieces (Figure A), is placed as a module in a herringbone pattern. Stones within the module can be rearranged to vary the design as shown in Figure B. For a more random and dramatic appearance, insert our GrandStone in place of stones within the module (Fig. C) and as shown in the pictures below. Figure D illustrates a pattern using all 5 stones, and Figure E shows all 5 stones with the GrandStone. Add a finishing touch by using one of our Andover 5511 styles as border or banding courses.

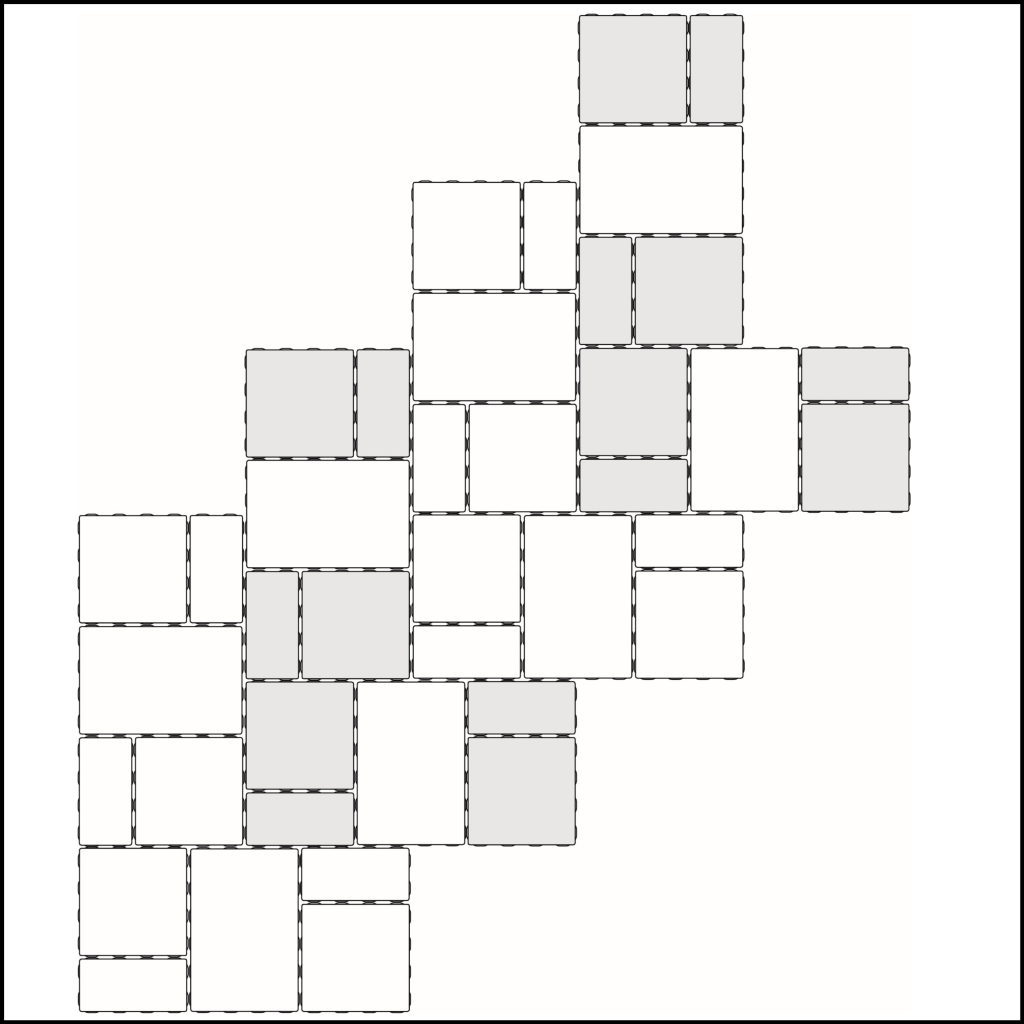

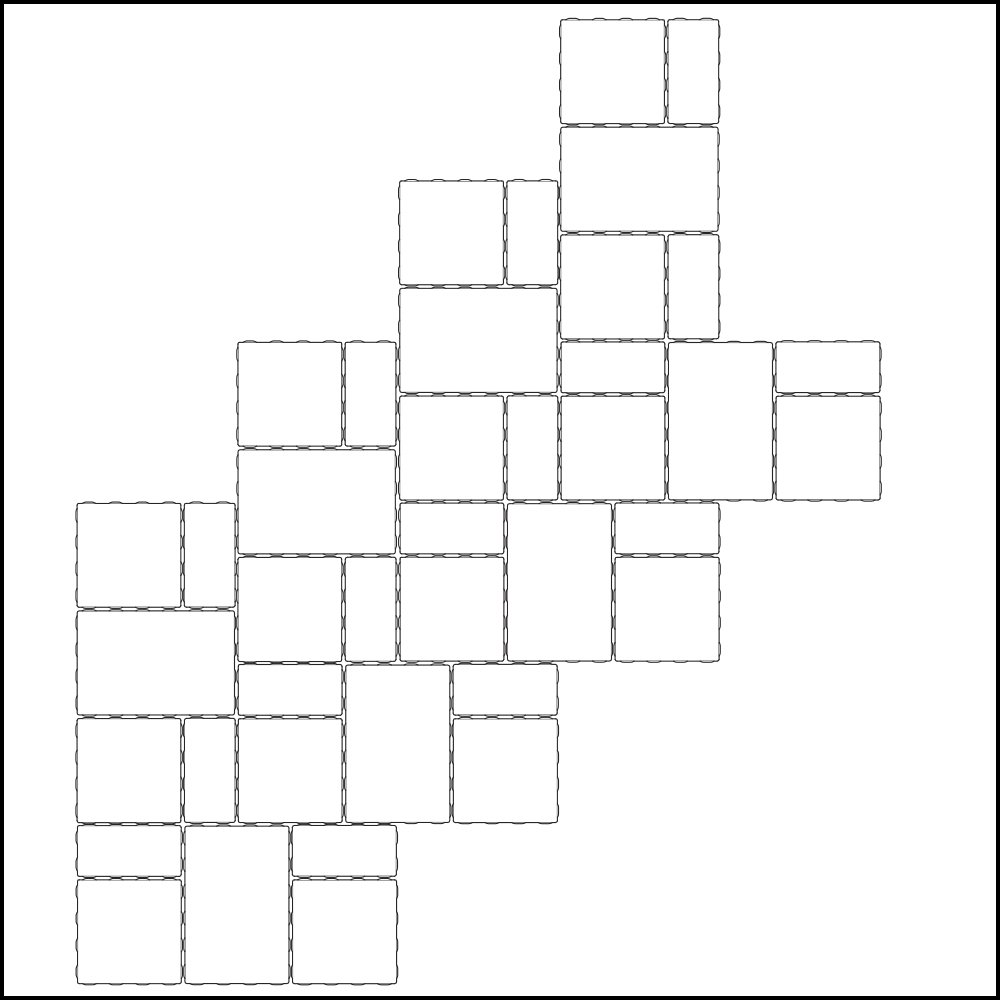

Andover Collection Herringbone Pattern #1
Andover Collection Herringbone Pattern #2
Andover Collection Pattern With All Stones #1
Andover Collection Pattern With All Stones #2
DOWNLOAD PATTERNS

Applications:

Commercial/Municipal
Driveways
Patios & Walkways
Permeable
Poolside
